WHERE TO USE
• Interior/exterior
• Vertical/overhead
• Precast concrete elements
• Columns
• Joint repair of concrete walls
FEATURES AND BENEFITS
• Can be mixed with water or Planicrete ® AC
• Can be shaved to match the surrounding contour
• 1/16" to 4" (1,5 mm to 10 cm) vertical thickness
• 1/16" to 2" (1,5 mm to 5 cm) overhead thickness
• Contains corrosion inhibitor
• Shrinkage-compensated
SURFACE PREPARATION
• Concrete surface must be clean and free of loose particles, efflorescence, paint, tars, grease, asphaltic materials, bond breakers, curing compounds, wax and any foreign substance.
• Mechanically profile clean, sound and stable concrete surfaces to obtain a concrete surface profile (CSP) equal to or greater than #5 per ICRI Guideline
MIXING
Before product use, take appropriate safety precautions. Refer to the Safety Data Sheet for details.
1. Into a clean mixing container, pour 3/4 of the required 0.8 U.S. qt. (0,76 L) of potable water per 10-lb. (4,54-kg) bag, or 3/4 of the required 1 U.S. gal. (3,79 L) of potable water per 50-lb. (22,7-kg) bag or pail.
Note: If Planicrete AC is being used, replace the full amount of required water with diluted Planicrete AC per its Technical Data Sheet.
2. Slowly add the full bag of Planitop X into the mixing container while mixing with a drill and Jiffy mixer.
3. Add as much of the remaining 1/4 of fluid as needed.
4. Mix for 3 to 4 minutes. Continue to mix until a smooth, homogenous consistency is achieved.
APPLICATION
Read all installation instructions thoroughly before installation.
1. Before application, ensure that prepared concrete is saturated surfacedry (SSD).

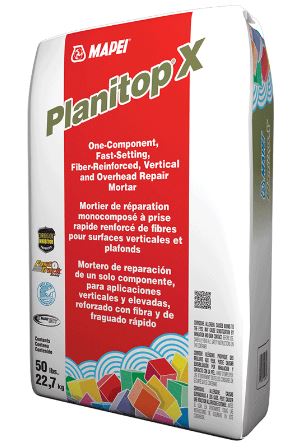

2. Apply a scrubcoat of Planitop X. One-Component, Fast-Setting,
Fiber-Reinforced, Vertical and Overhead Repair Mortar Planitop®
X
3. Apply Planitop X directly to the scrubcoat before it dries out.
4. Apply Planitop X by float, working from the center of the repair to the
outer edge. Finish the application similar to the surrounding concrete.
CURING
• Protect Planitop X from high wind or direct sunlight during curing.
• Protect the surface with wet burlap or a continuous mist spray for at least
4 to 6 hours after placement.
• Alternatively, immediately after finishing, apply a water-based curing compound conforming to ASTM C309.
